发布日期:2024-10-23
旋转挂梁桥式起重机
本起重机带有可旋转挂梁,适用于钢厂、船厂、港口、堆场和仓储等室内或露天的固定跨间,装卸 及搬运钢板、型钢、盘卷等物料。具有一定的防摇摆功能。挂梁下可以携带电磁吸盘、夹钳等专用吊 具 。
注:
1、进入司机室的走台方式为:端入、侧入、顶入;
2、起重量包含挂梁及专用吊具自重;
3、挂梁最大旋转角度为±180°;
4 、图示极限位置尺寸S1 、S2为挂梁旋转90°后,挂梁中心线距轨道中心线数据;
5、以下所有数据为室内使用时;
6、参数表中起重机总功率为行车本体功率,不含专用吊具功率
Low level slewing overhead crane with carrier-beam
The crane is equipped with a rotatable hanging beam,which is suitable for loading,unloading and handling steel plates,section steels,coils and other materials in indoor or outdor fixed spans of steel plants,shipyards,ports,storage yards and warehouses.It has certain anti swing function.Special iting appliances such as electromagnetic suction cups and clamps can be caried under the hanging beam.
Notes:
1.The e modes of entering cab:from the end;from the side;from the top;
2.The lifting weight includes the deadweight of hanging beam and special lifting appliance; 3.The max.rotating angle ofcarrier-beam is±180°;
4.Theicsofthelinitingpoition SlndS2in Thefigreane the duabetwenthe certerlneofcamier-Beamandthe centerline ofthemlafierthe carier-beanrots90; 5.All below-mentioned data is forbeing used indoors;
6.The total power of the crane in the parameter list is the powerof The travelling crane,but excludes the Power of specillifing appliances

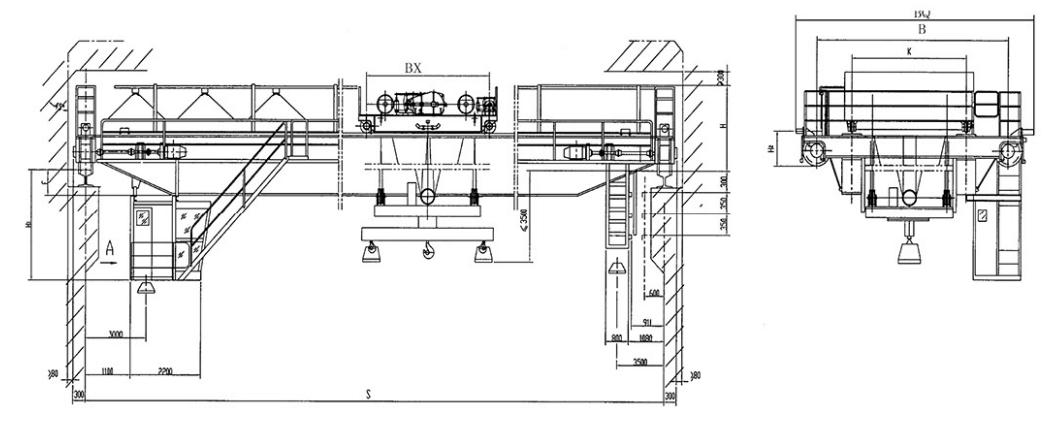

简图:sketch

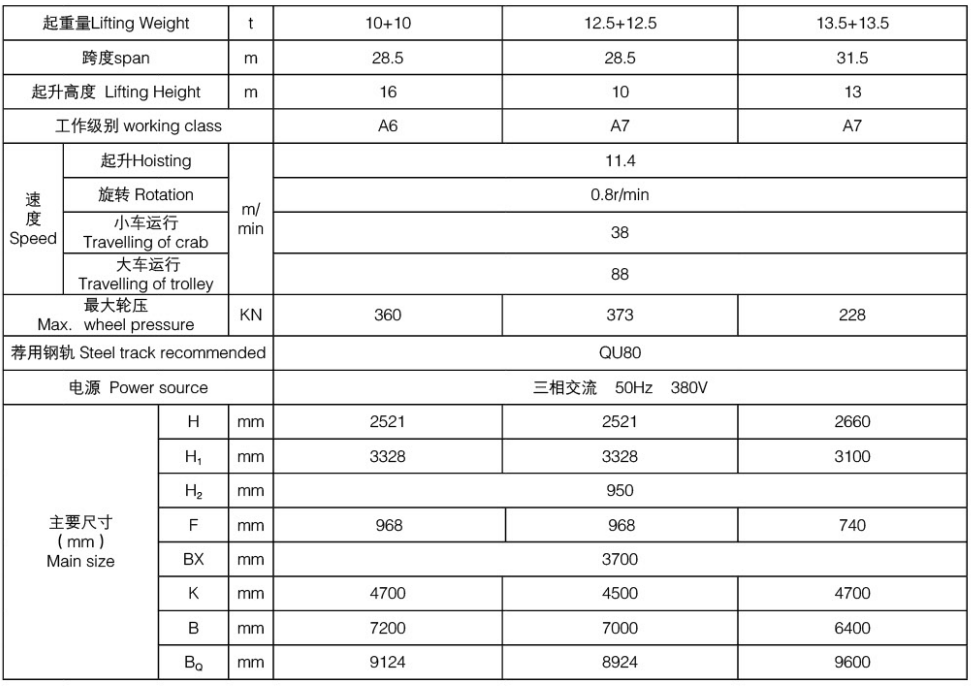

技术参数
