简介

CD, 型 ，MD, 型钢丝绳电动葫芦是一种轻小型起重设备。它可以安装在葫芦单梁，桥式起重机，门式起重 机，悬臂起重机上。稍加改动，还可作卷扬用。因此，它是工厂、矿山、港口、仓库、货场、商店等常用的起重 设备之一，是提高劳动效率，改善劳动条件的必备机械。

CD₁  型电动葫芦的起升速度为常速，可以满足一般使用要求；MD₁    型电动葫芦具有两种起升速度——常速和 慢速。慢速工作时，可以满足精密装卸，砂箱合模，机床检修等精细作业的要求。所以，MD₁ 型电动葫芦的使用 范围比CD, 型电动葫芦更为广泛。

为满足较大吨位起重作业的需要，公司生产HC型大吨位。

Model CD,, MD, Wirerope Electric Hoist is a small-sized lifting equipment, which can be mounted on singlebeam, bridge,gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbours,warehouses, cargo storage areas and shops, es sential in raising working efficiency and improving working conditions.

Model CD Electric Hoist has only one normal speed, which can satisfy normal application. Model MD, Electric Hoist providestwo speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box.

maintenance of machine tools, etc. Thus, model MDI Electric Hoist is more widely than Model CD,.

To meet the needs of lifting heavier cargo, our factory also manufactures HC20t electric hoist.

本样本所提供重量为设计值，制造值为±5~15%。

The weight of this sample is dsign value and actual weight varies±5~15%.

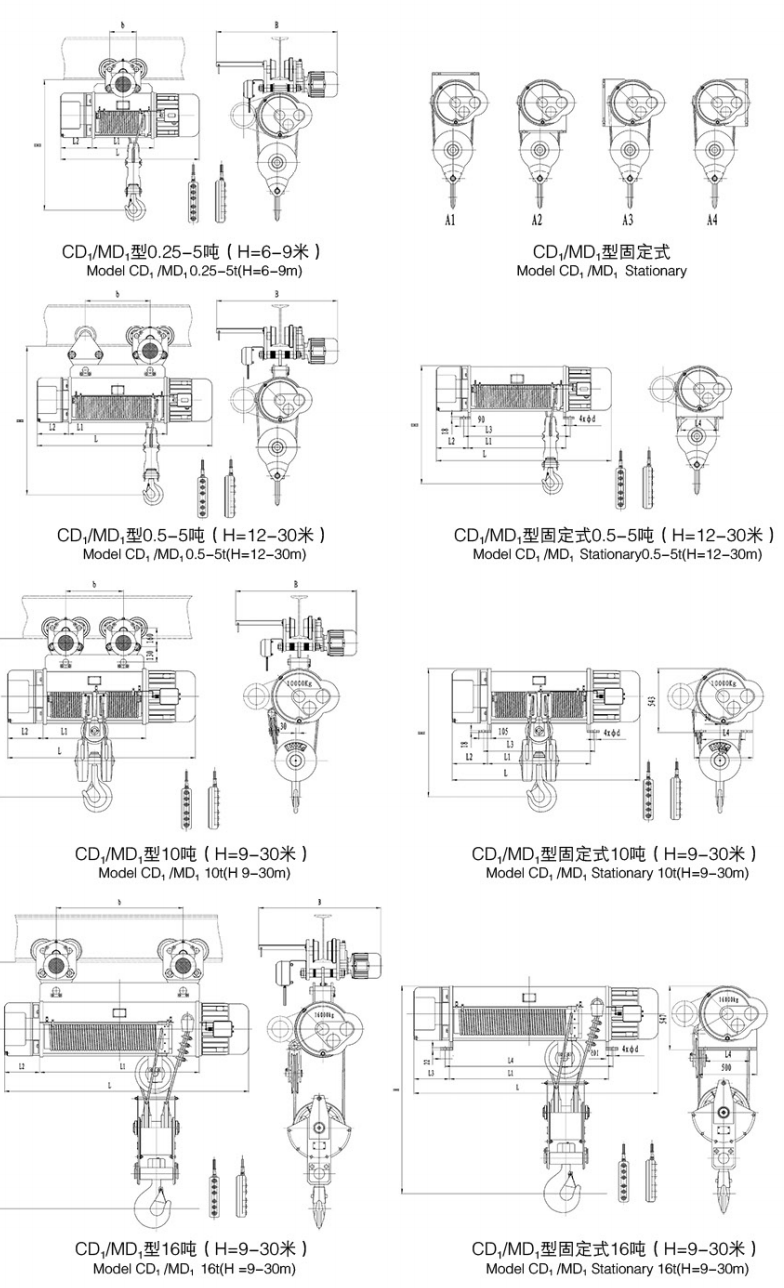

主要技术参数及外形尺寸
